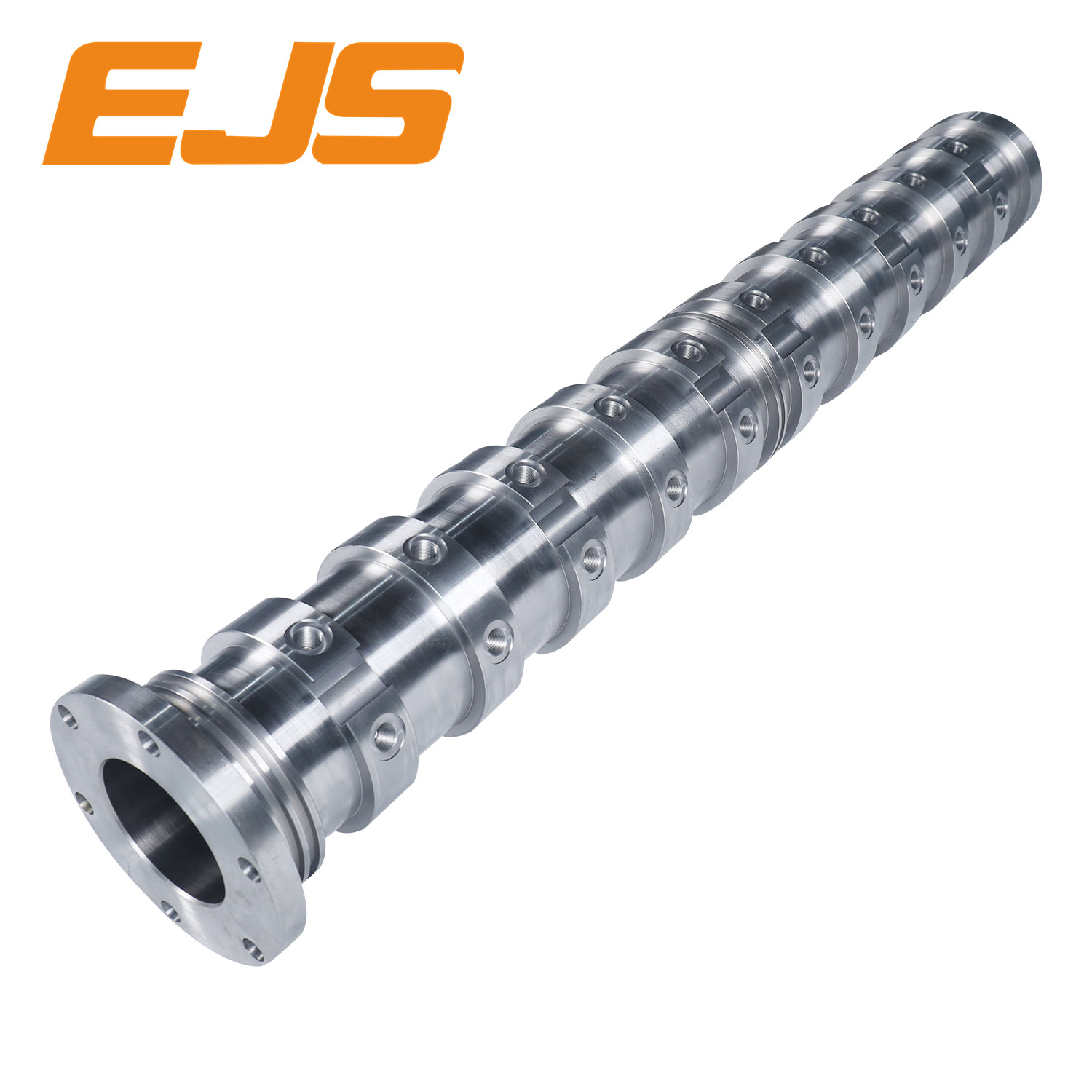

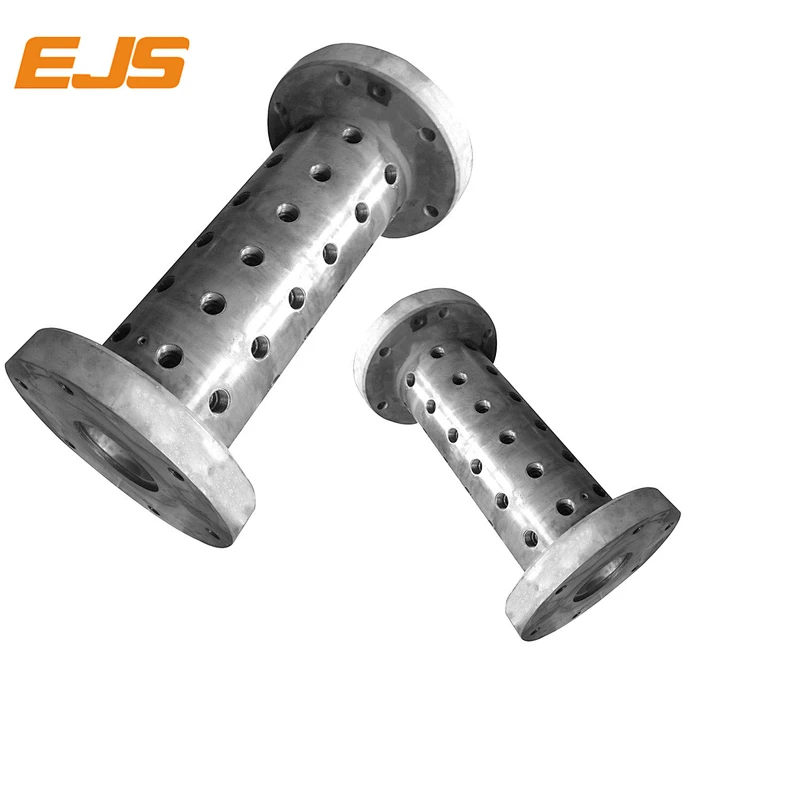

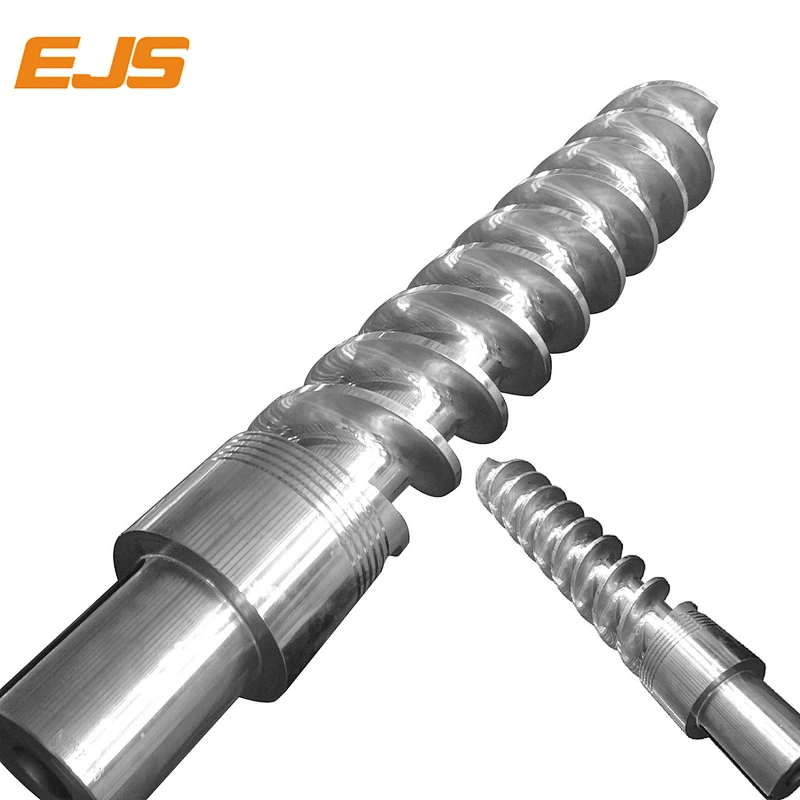

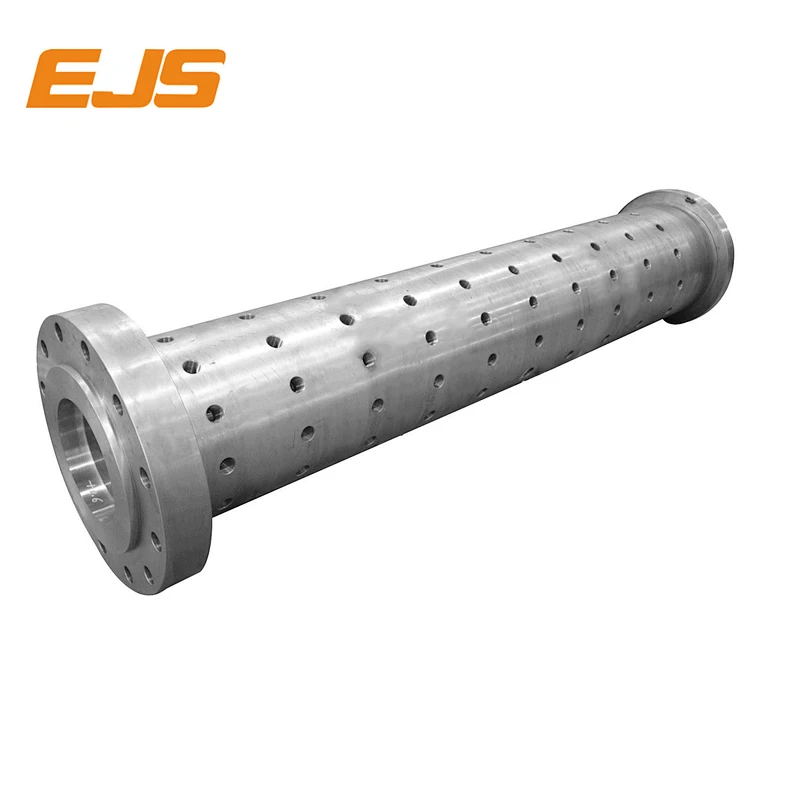

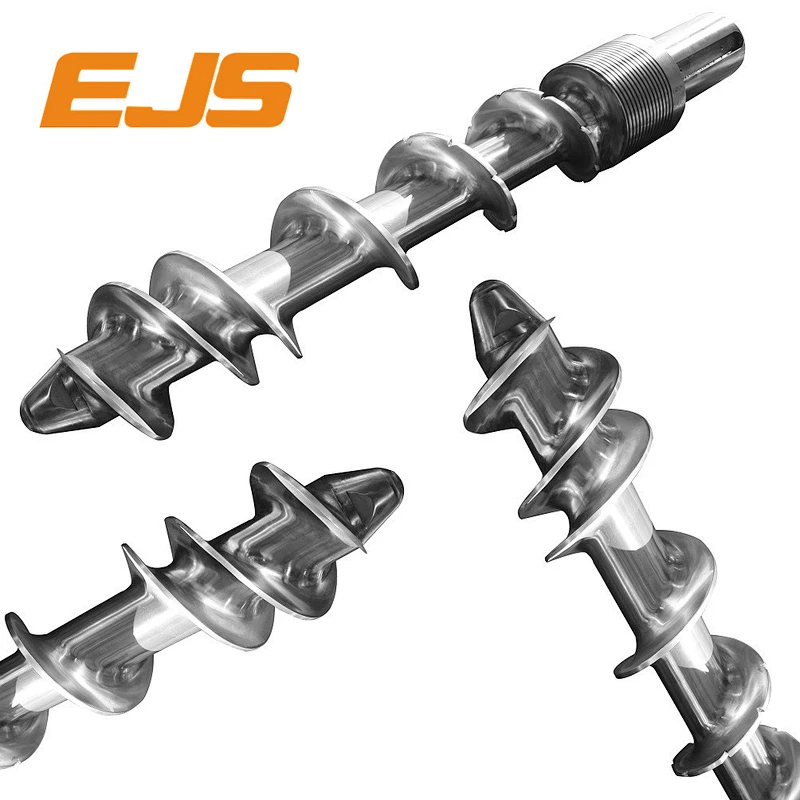

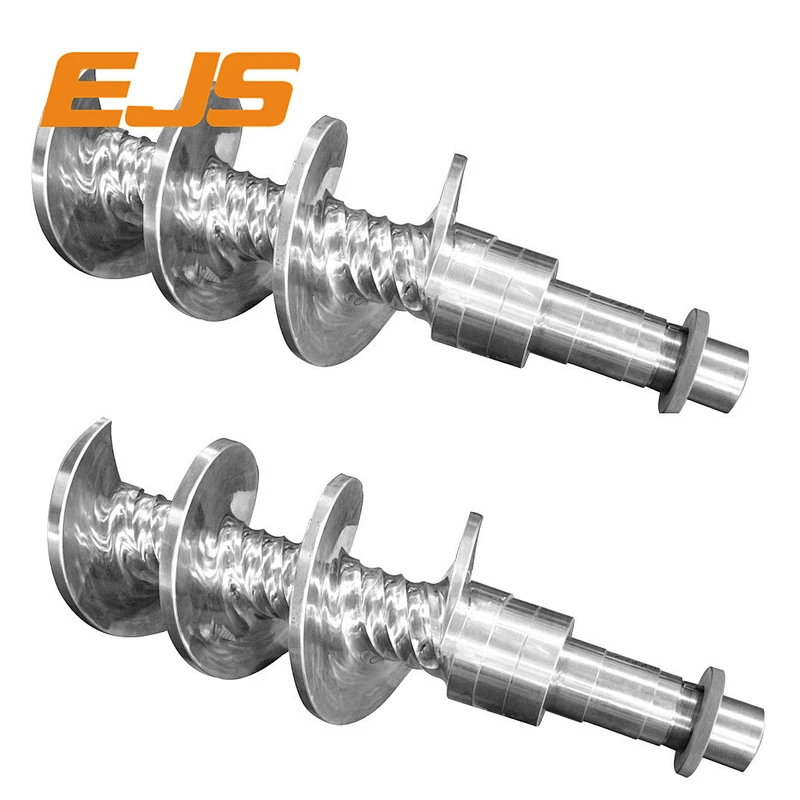

PIN style rubber screw and barrel Pin screw barrel is single screw barrel used on a single screw extruder withup to 10 rows of radial pins projecting from the barrel wall into the screw fluite, thereby doing flow division, laminar change and drop in shear, giving excellent flexibility, perfect mixing and dispersing effect. The same machine can be adopted working with full range of rubbers without any change in the machine as regards screw design etc. EJS produces pin screw barrel for pin extruders for over 20 years.
Bore diameter available for PIN style rubber screw and barrel ¢25~¢500

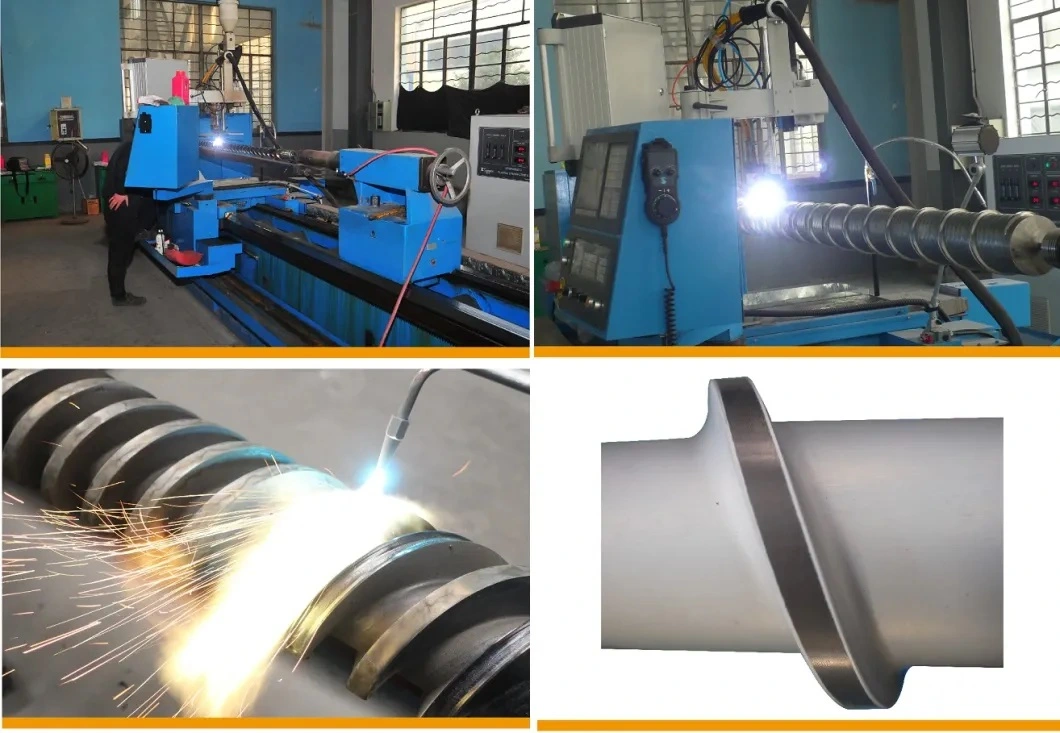

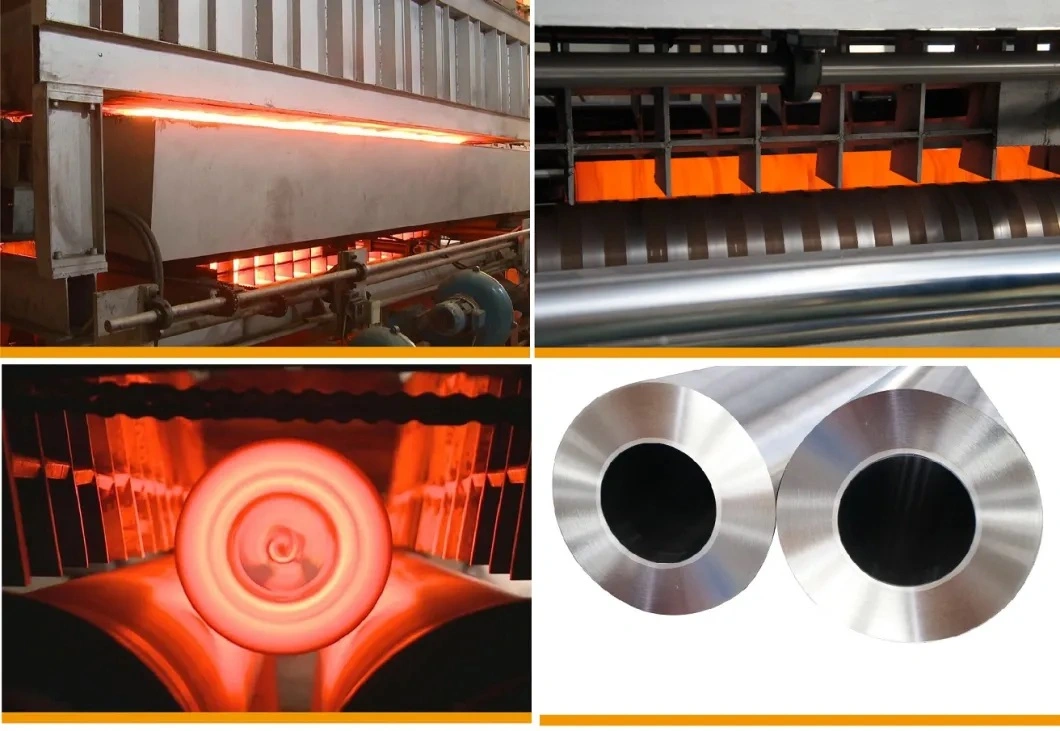

Surface Treatment of PIN style rubber screw and barrel Nitrided Hard Chrome Plating Ceramic coated Hardfacing / Bimetallic with Ni60, Colmonoy 56, Colmonoy 83 Quenching
Material request for PIN style rubber screw and barrel
Anti-high temperature; Anti-wearing; Anti-corrosion; High strength to work with high torque and high speed; Good cutting performance; The relief and the thermal deformation is small after heat treatment.
The material for rubber barrel include: 38CrMoAlA (DIN1.8509) 42CrMo ( AISI4140) Stainless steel 304
Application of PIN style rubber screw and barrel Shim and cable Tire Rubber profile Rubber sheets Rubber flooring
Benefits of PIN style rubber screw and barrel A universal extrusion system applicable to whole range of rubber compounds (Natural / Synthetic) without change of screw design or any other alterations; Excellent mixing and homogenising; Compounds with minimum thermal stresses; Compounds with outstanding heat exchange between material particles; Low energy absorption; Minimum shear; Lower extrusion temperature; Screw and barrel self cleaning; No need of pre-heating mills, space saving; Higher outputs; Greatextrusionquality.
Rubber Pin screw barrels are widely used in extruding all types of rubber products and in supplying rubber to calenders. They can also be used extruding rubber tube, rubber film, inner tire,tire surface cover, rubber wire, rubber cable and so on. Pin makes rubber machine-finishing more efficient and is a major component for high efficient and energy-saving equipments.

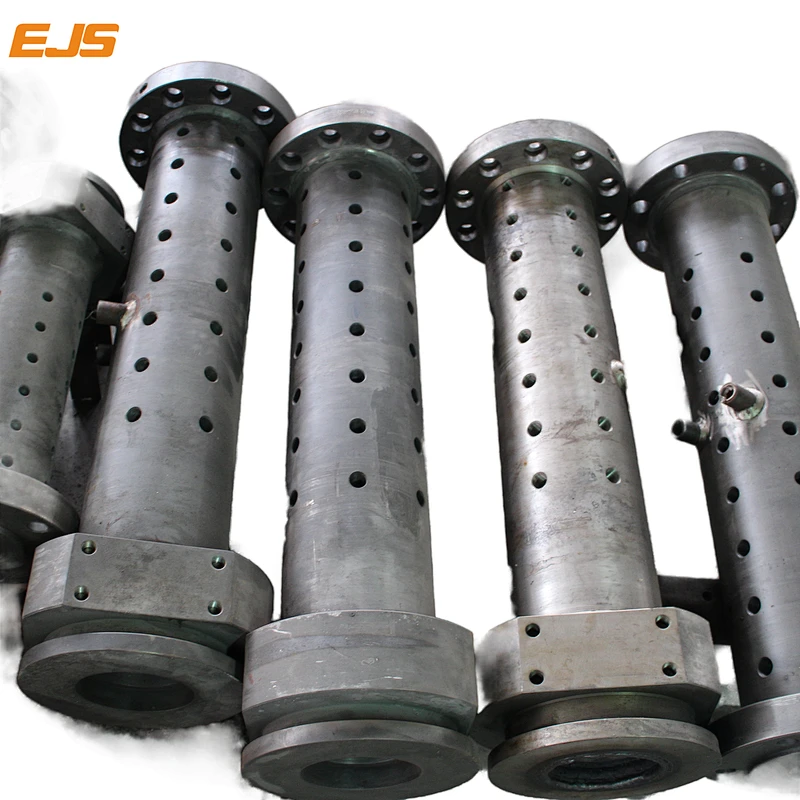

PIN style rubber screw and barrel
