An extruder barrel is an essential component of an extruder machine that plays a crucial role in the processing of plastics, rubber, and other materials. The extruder barrel houses the screw, which forces the material forward through the barrel to melt and transform into the desired shape. When designing an extruder barrel, several factors must be taken into consideration to ensure its efficiency and durability.
Important Factors When Designing an Extruder Barrel:
Materials to be processed: The type of material being processed is a critical factor when designing an extruder barrel. The temperature and viscosity of the material dictate the size and shape of the barrel and screw.
Screw Design: Screw design plays a critical role in the efficiency of the extrusion process. The extruder barrel design must match the screw design to ensure an efficient flow of material through the barrel.
Barrel Diameter and Length: The diameter and length of the extruder barrel must be optimized based on the material being processed and the screw design. The size and shape must be chosen carefully to ensure an efficient and consistent flow of material.
Single Extruder Barrel or Twin Extruder Barrel:
Single extruder barrels are used for simple extrusion processes. Twin extruder barrels are used for more complex extrusion applications where multiple materials are being processed at the same time.
Suitable Steels to Make Extruder Barrel:
The choice of steel to make the extruder barrel depends on the specific application and the requirements of the end product. Commonly used steel grades include 4140, 4340, 1045, 38CrMoALA, 316, and 304.
Suitable Surface Treatments for Extruder Barrel:
Common surface treatments for extruder barrels include nitriding, and carbide coating. These treatments help to improve the wear resistance, hardness, and corrosion resistance of the barrel.
Machines Needed to Produce Extruder Barrel:

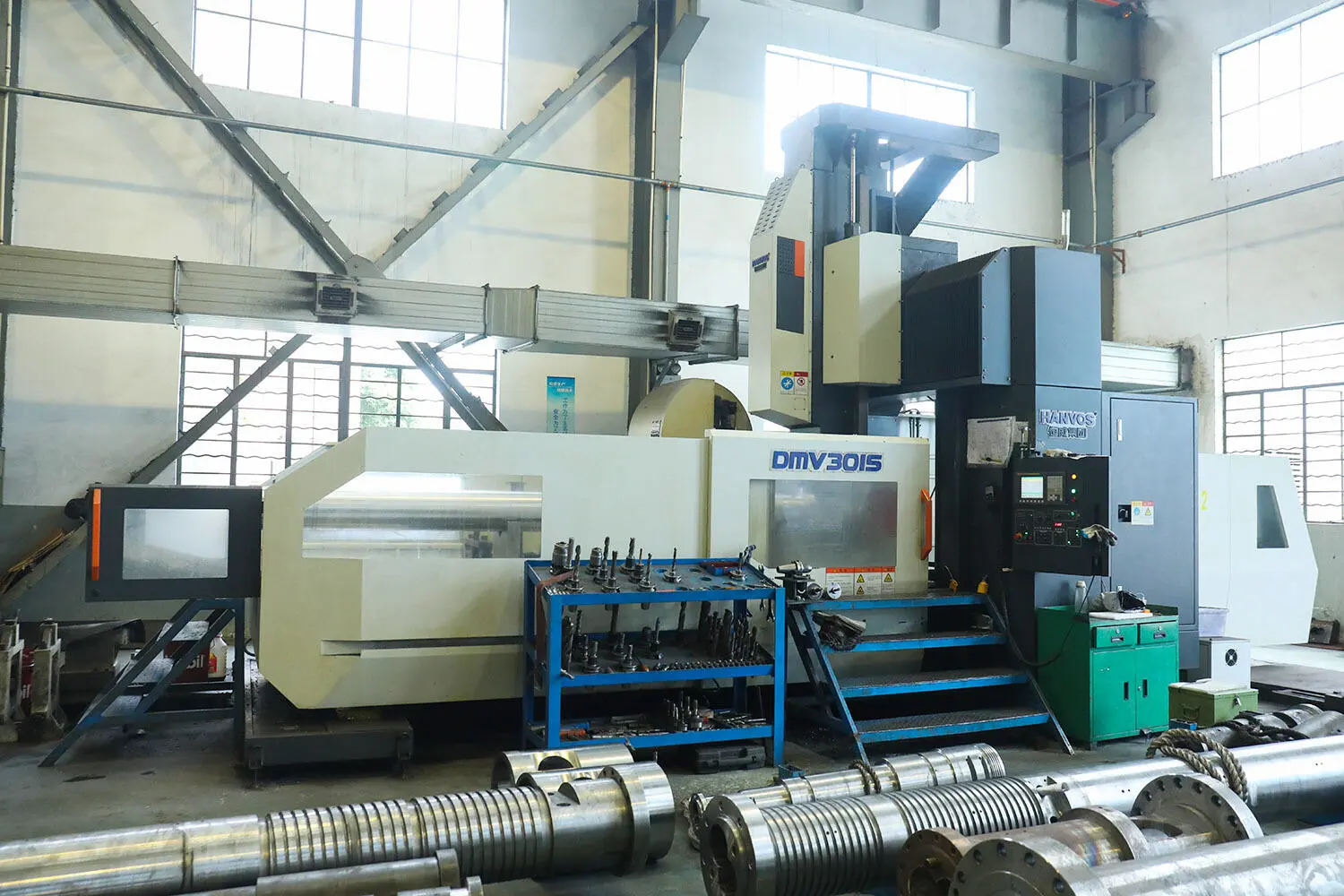

The production of extruder barrels requires specialized machines such as CNC machine tools, lathes, and boring machines. These machines are used to shape, drill, and finish the extruder barrel to its final specifications.
How to Inspect Extruder Barrel:
Extruder barrels need to be inspected thoroughly to ensure they meet the desired specifications. This can be done using a variety of techniques such as non-destructive testing, metallography, and dimensional inspection.
Qualifications Needed When Hiring Operators to Produce Extruder Barrel:
Operators responsible for producing extruder barrels need to have extensive knowledge and experience in machine tools, metalworking, and production processes. They should also be familiar with the materials being processed and the requirements of the end product.
Machines or Tools Used to Make Measurement Work Easier for Extruder Barrel:
Specialized measurement tools such as micrometers, dial indicators, and laser scanners are commonly used to measure and inspect the extruder barrel. These tools are designed to provide precise and accurate measurements for the production of high-quality extruder barrels.
In conclusion, the design and production of extruder barrels are critical to the efficiency and durability of the extrusion process. Factors such as the materials being processed, screw design, barrel diameter, and length must be taken into consideration when designing the extruder barrel. The choice of steel, surface treatments, and production methods must also be carefully considered to ensure that the extruder barrel meets the required standards. With the proper equipment and experienced operators, the production of extruder barrels can be optimized to ensure a consistent and high-quality production process.
